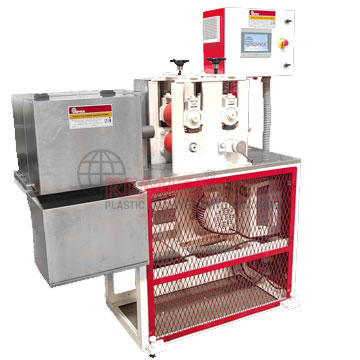

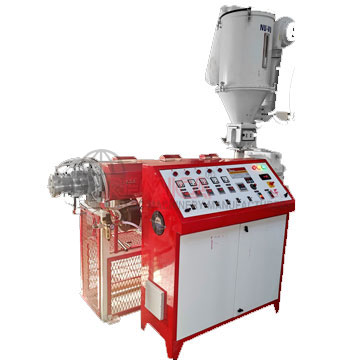

REMICA PP/PLA- STRAW/LOLLIPOP STICKS/COTTON BUDS STICKS/PP REFILL EXTRUSION LINE
APPLICATIONS:
It Is Also Suitable For A Variety Of Plastic Tube Similarly to Drinking Straw.
- Pla 100% Bio-degrable Straw Pipe.
- PP Drinking Straw Pipe/single/two And Three Colours.
- LolliPop Sticks,
- Cotton Bud Sticks,
- PP Refills For Ballpen.
Specifications:
| MODEL NO. | PLAS-RPM-50 | PLAS=RPM-65 | SCREW DIA | 50mm | 65mm |
|---|---|---|
| Max. Extrusion Capacity. | 20 To 30 Kg/hr | 35 TO 50 KG/hr |
| Dia Of Straw | 3mm To 8mm | 5mm To 10mm |
| Power Required | 25 KW APPROX./440 V/3 PHASE/50 Hz | 35 KW APPROX./440 V/3 PHASE/50 Hz |
| Space Required | 35ft L x 15ft W x 12ft H | 40ft L x 15ft W x 12ft H. |
- Simple structure, high level of automation, high efficiency, and easy operation.
- Control panel concise designed for easy operation with PLC and HMI touch screen.
- All electric parts are best quality brands.

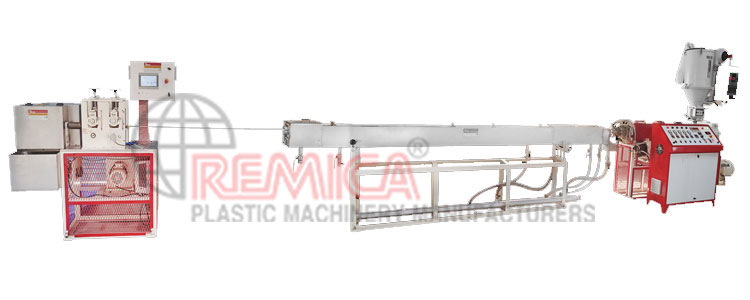

- Whole machine from extruder--water tank traction--cutting device a round 10 meters, you should leave more one space for staff working.
Technical data subject to change without notice due to continuous development. Refer our quotation for details.
